Valve Test Equipment
Good Gear Solution Pte Ltd is a company that was established in 2018, but its roots and experience in the PSV (Pressure Safety Valve) testing field can be traced back over 15 years. Over the years, Good Gear has focused on developing devices for both liquid and gas applications. It has gained extensive expertise in controlling and measuring pressure, temperature, and flow of various fluids.
Safety valves in-situ testing and test safety valves on test bench
Leading Valve Repair and Pressure Safety Valve Testing Solutions for Enhanced Enterprise Safety.
VALVE TEST EQUIPMENT
Model overview

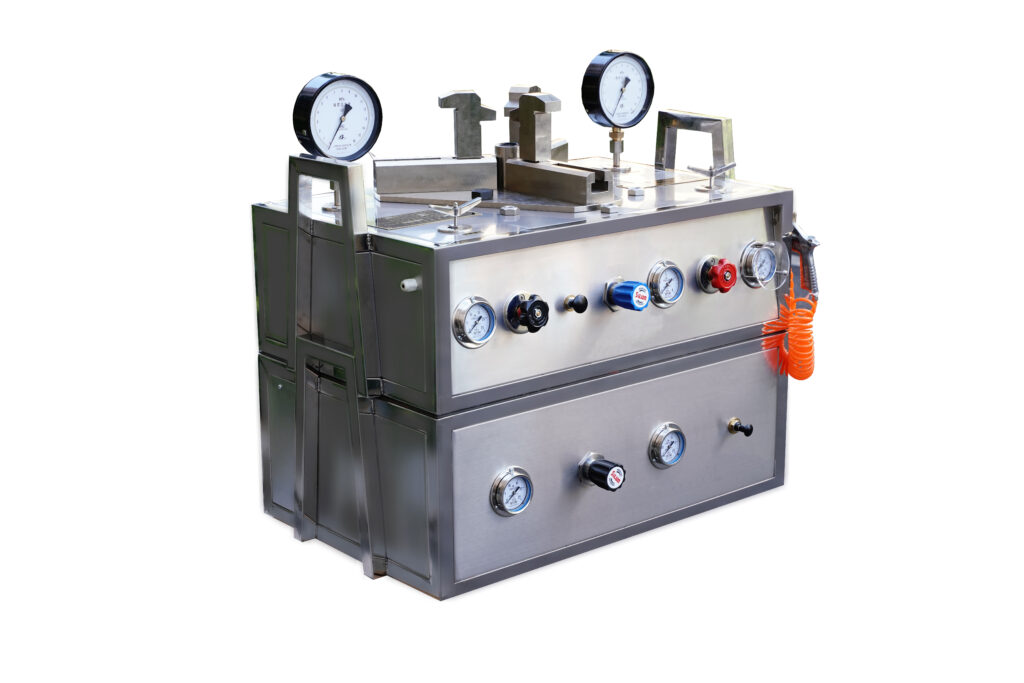

GGS-MAQ-400/40BN-C
Model: GGS-MAQ-400/40BA-C
Tested object: Safety valve
Features: Safety valve take-off pressure seal test
Test medium: Air(N2)
Maximum test pressure: Gas:40MPa
Maximum proof path: 400mm/DN15-DN400
Calibration accuracy: ±0.4%
Valve test bench for Computer Control Safety Valve Test Bench
Online Safety Valve Testing Equipment
1. Outer Force: Manual Hydraulic Pump
2. Up-force scope: 0-50KN (optional could be 200KN)
3. Force sensor range: 2-5KN, 20-50KN
4. Working method: auto-partition accuracy: 0.4% F.S
5. Power: inside and outside Li-battery (Large capacity battery is an option)
Valve test bench for Online Testing Equipment
GGS-PTP-1A
Intake medium: Nitrogen, compressed air
Maximum Intake Pressure (bar): 200
Maximum allowable gas pressure(bar): 150
Valve diameter range: DN15-150(1/2″-6″)
Clamping force: 3Tons/6Tons
Clampable flange thickness rage(mm): 12-48
Valve test bench for Pressure Safety Valves: PTP-1A
GG-3100-1H
This equipment can calibrate various flanged breathing valves and is a special device for calibrating breathing valves. It is suitable for checking the positive pressure exhalation, negative pressure inhalation opening pressure and sealing performance of the breathing valve. Learn more about Breather Valve Test Bench.
Valve test bench for Breather Valve Test Bench
GGS-PTP-5/FW
Explore the GG-PTP-5/FW Breather Valve Test Bench, ideal for calibrating flanged breathing valves. Ensure accurate performance for positive and negative pressure testing.
Valve test bench for GG-PTP-5/FW Breather Valve Test Bench
SAT-QCT Safety Valve Testing
Container: 20GP
Safety Valve Pressure Calibration Test Bench: GGS-SAT-QCT
Safety Valve Calibration Computer System: 1 set
Safety Valve Seal Grinding Tool: GGS-YXJ
High-pressure Gas Source Machine: NRW150-GSX
Cantilever Crane: 0.5T, 1.2M
Valve test bench for Safety Valves Containerized Testing
GGS-3100-1 and GGS-3100-L
1. The GGS 3100 series safety valve test bench is capable of performing accurate set pressure testing and seat testing for up to 12″ valves.
2. Suitable for all types of SRV based on international test standards API526, API527, ANSI/API RP576, ensuring reliable results.
3. Equipped with hydraulic automatic clamping and offers significant clamping force, enhancing performance during operations.
Valve test bench

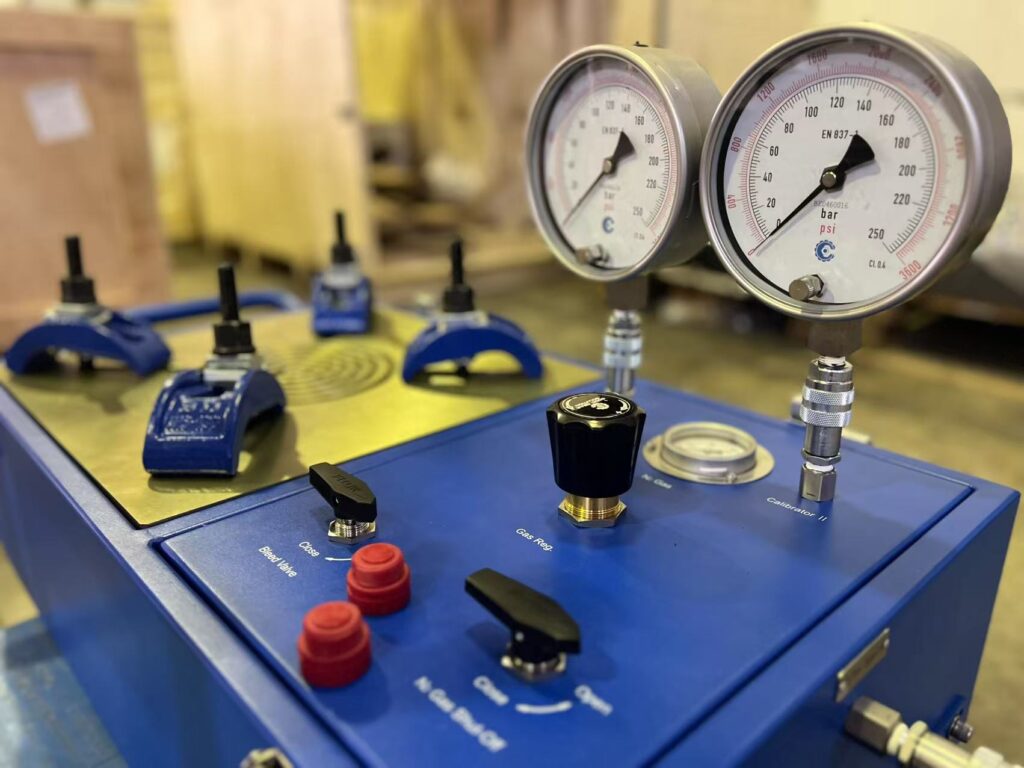

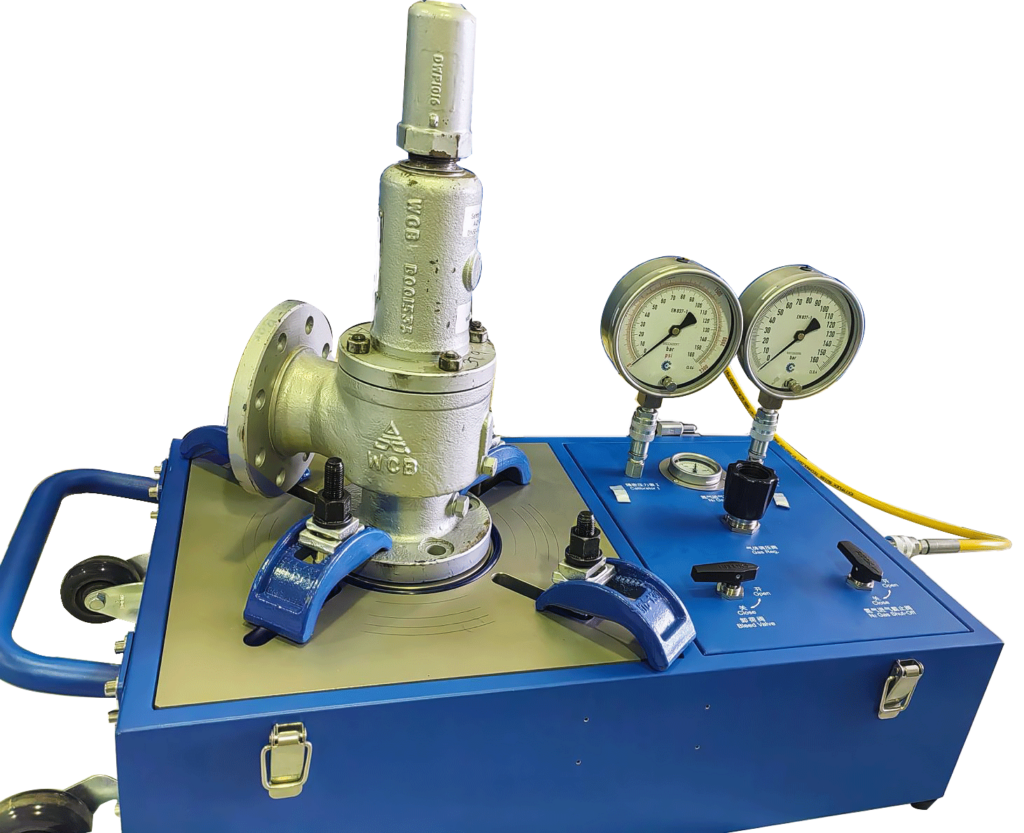

GG PTP-1
Test pressure: 150bar
Test range: Flanged: DN15-150(1/2”-6”) | Threaded: DN15-50(1/2”-2”)
Clamping force: 6T, Manual clamping
Test medium: Nitrogen gas, compressed air
Maximum flanged thicknessed air: 45mm
Minimum flanged diameter: 75mm
Maximum flanged diameter: 320mm
Power supply: Gas source: nitrogen cylinder≤200bar
